This product uses a 3-Phase power supply and will not work with a standard 110v or 240v 3-pin socket.
Call FREE for expert advice
0808 196 938022kW Heat Capacity: Great capacity for temporary heating of events and construction sites, or for back up heating during planned maintenance or emergencies.
Two Power Settings: Capable of operating either at full power of 22kW or half power of 11kW. Allows you to choose the best output for your application.

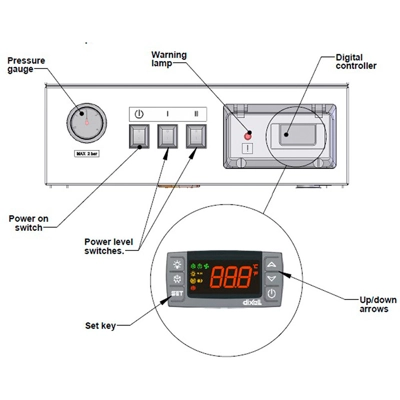

Digital Control Panel: Allows easy control of the water boiler and for the unit to be tailored to suit your application.
Standard Plumbing Fittings: Allows the portable boiler to be plumbed into an existing heating system quickly and easily, for minimal downtime.
Great Safety Features: An expansion tank, over temperature cutout and high pressure cut out ensure safe and reliable operation.
Circulation Pump: Pumps water effectively through the system for effective operation.
400v 32A Power Supply: 32A 3 phase power supply is ideal for site use.

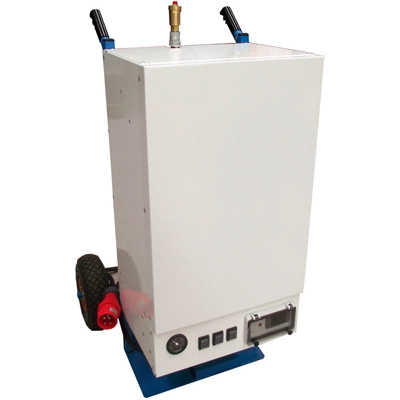

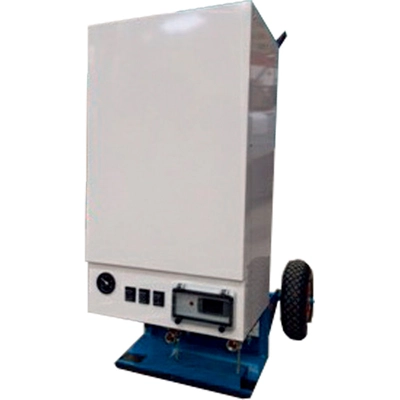

Trolley Mounted Design: The robust industrial trolley with handles and wheels allows the Broughton WB22 packed electric water boiler to be wheeled around a site and plumbed in wherever it is required.
The Broughton WB22 Mighty Heat portable water boiler is a compact, durable and safe 22kW electric boiler. It offers everything a traditional central heating boiler offers - but in a portable format
It can act both as a temporary boiler for events and construction sites, and as a back-up boiler during planned maintenance or in emergencies when your main boiler goes down. It connects directly to a pre-existing heating system to restore heating quickly and with minimal disruption.
This industrial portable boiler delivers 22kW of hot water from a 32A 400V supply. It is a compact and quiet unit, with two power settings, so it can operate at full capacity of 22kW or half capacity of 11kW. It also has a flow rate of 2.7-3.5m3/hr and an operating temperature range of 20°C-80°C.
It is the perfect temporary water boiler for a range of different areas without a mains gas or oil supply, or during a central heating disruption. It can be used on construction sites, in industrial units, in schools, factories, care homes and temporary buildings. It can also be used for under floor heating installations and for drying concrete floor screeds on site.
The Broughton WB22 packaged water boiler features a simple digital control panel which allows easy control and for the unit to be tailored to suit your application. It also comes with a circulation pump and a range of safety features, including an expansion tank, over temperature cutout and high pressure cut out. The standard plumbing fittings on the WB22 allow it to be plumbed into an existing heating system quickly and easily, for minimal downtime.
The robust trolley mounted design allows the Broughton WB22 water boiler to be wheeled around a site and plumbed in wherever it is required.
See More Like This: Portable Water Boilers & Hot Water Pumps
Broughton WB22 Portable Water Boiler Specs
Power: 11kW/22kW
Flow Rate: 2.7-3.5 m³/hr
Operating Temp Range: 20°C to 80°C
Supply: 400v 50hz
Plug Size 32A
Mobility: Portable
Dimensions HxWxD: 1100x440x420 mm
Weight: 46kg
